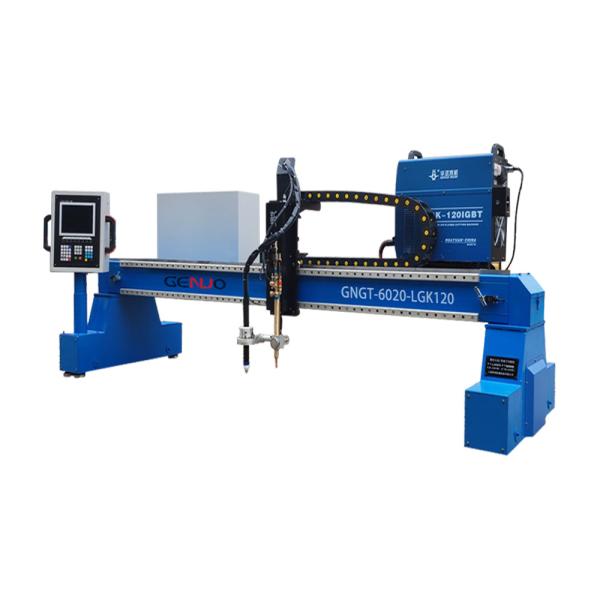

Automatic LGK120 Plasma Cutting Machine 220V 380V 415V 440V

Name: Automatic LGK120 Plasma Cutting Machine 220V 380V 415V 440V
Brand: genuo
Price: 1 USD

Brand Name : genuo

Model Number : LGK120- 3015 6020

Certification : M.2019.206.C3862

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : L/C, T/T, D/P, D/A

Supply Ability : 1 Set/Sets Every 15~35 days

Delivery Time : 90 days

Packaging Details : carton box

Product name : Plasma Cutting Machine

Cutting Method : Plasma / Flame

Cutting Material : All metal sheet / Mild/High Carbon steel

CNC Control system : FangLing F2300B Controller

Voltage : 220V/380V/415V/440V/customized

Color : Customer Choose

Electric Parts : France Schneider

Motor drive mode : Japanese Panasonic servo motor and driver

Drive system : Dual drive

Drive method : Rack and pinion drive

Reducer : APKE Planetary reducer

After-sales Service Provided : Online Support Video Technical Support

Lifting Travel : ≤170 mm

Max Travel Speed : 8000 mm/min

Running Accuracy : ≤ 0.05mm

Weight : 2000kg

value-added services : Presented Two years warranty

Degree of automation : automatic

Dimension : 3650*1600*1580mm

Contact Now

Automatic LGK120 Plasma Cutting Machine 220V 380V 415V 440V

Genuo GNGT Plasma Cutting machine is a high efficiency, high precision multi-functional cutting machine. The machine frame adopts carbon steel welding structure, the whole annealing treatment, high precision, small volume inertia. X, Y and Z axes are processed with high precision to prevent deformation. Double drive transmission structure, equipped with high precision rack and special reducer. Cables, Panasonic servo motors or precision stepper motors provide high-torque AC power to ensure smooth operation at high speeds.
Powerful CNC cutting system and nesting software, with rich graphics, can be freely cut plane geometry, including vertical and horizontal slats, but also with automatic THC to adapt to the uneven metal plate.
The machine has a variety of beam sizes to increase the installation of cutting torches and improve cutting efficiency.

Thanks to the flexible assembly of heavy rail, the machine cutting length can be extended, and the low cost reduction enables the enterprise to maximize profits. Manufacturing metal cutting operation is simple and fast, good rigidity, high strength, stable operation.

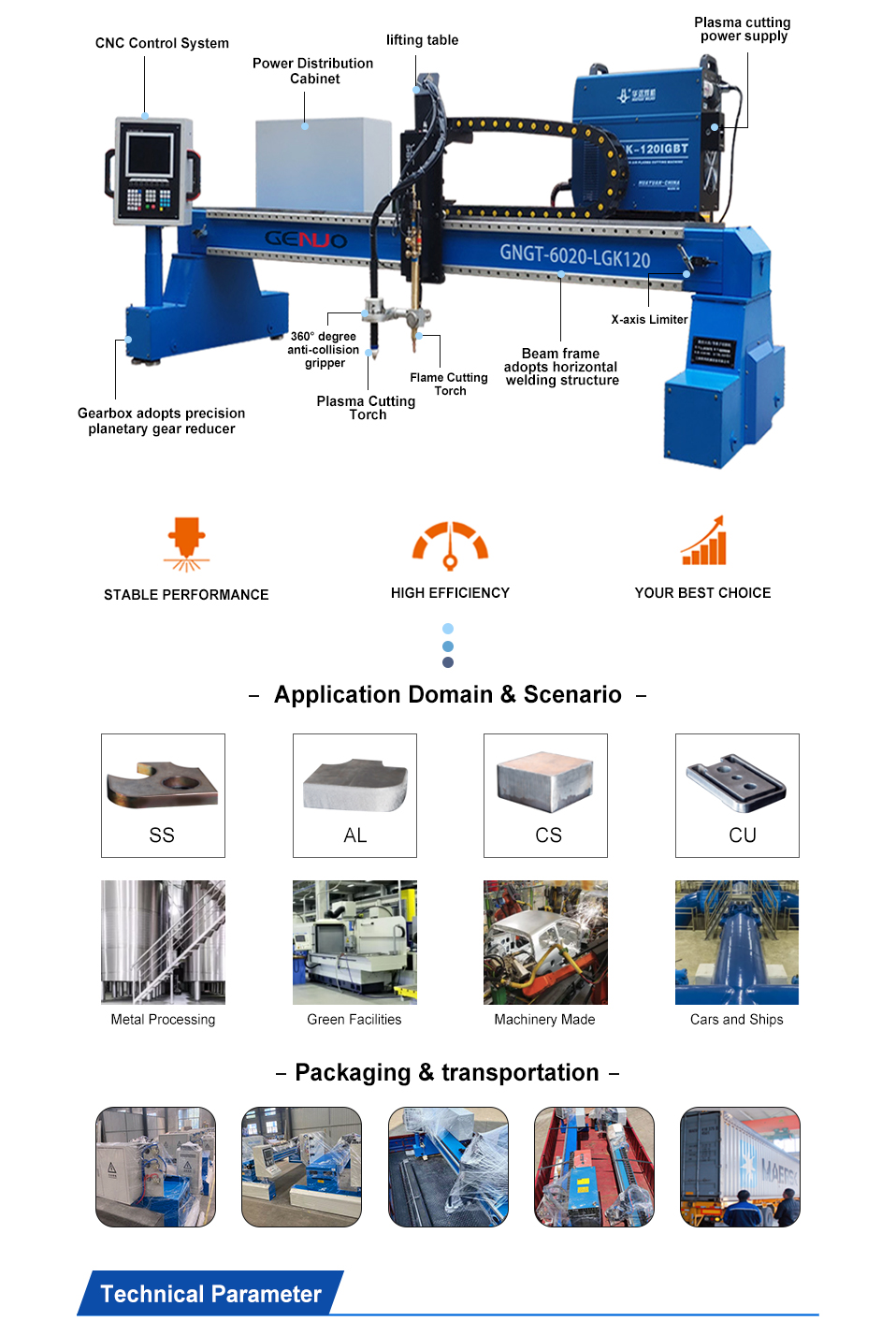

Gantry Frame

A structure that supports the plasma torch and ensures its accurate movement along the X and Y axes. High quality steel is used to ensure the stability of the machine.

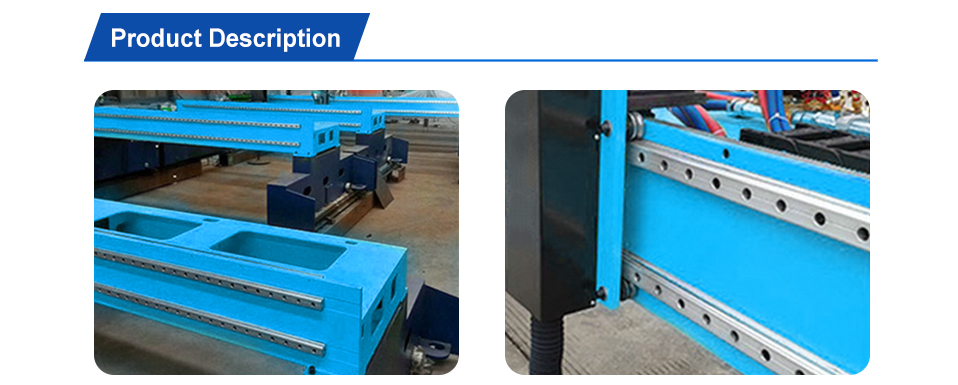

Dual-axis Guide Rail

Responsible for the torch's movement along the X and Y axes , two sets of guides ensure consistent and accurate cutting, resistant to wear and tear for a long time.

Automatic LGK120 Plasma Cutting Machine 220V 380V 415V 440V

Rack Drive

Responsible for converting the rotating motion of the motor into straight motion along the guide rail, ensuring accurate and consistent motion to provide high quality cutting.

Plasma and Flame Dual Use

The plasma cutting function is used to cut thinner metals, while the flame cutting function cuts thicker metals.
The dual function ensures the versatility and efficiency of the cutting process.

Automatic LGK120 Plasma Cutting Machine 220V 380V 415V 440V

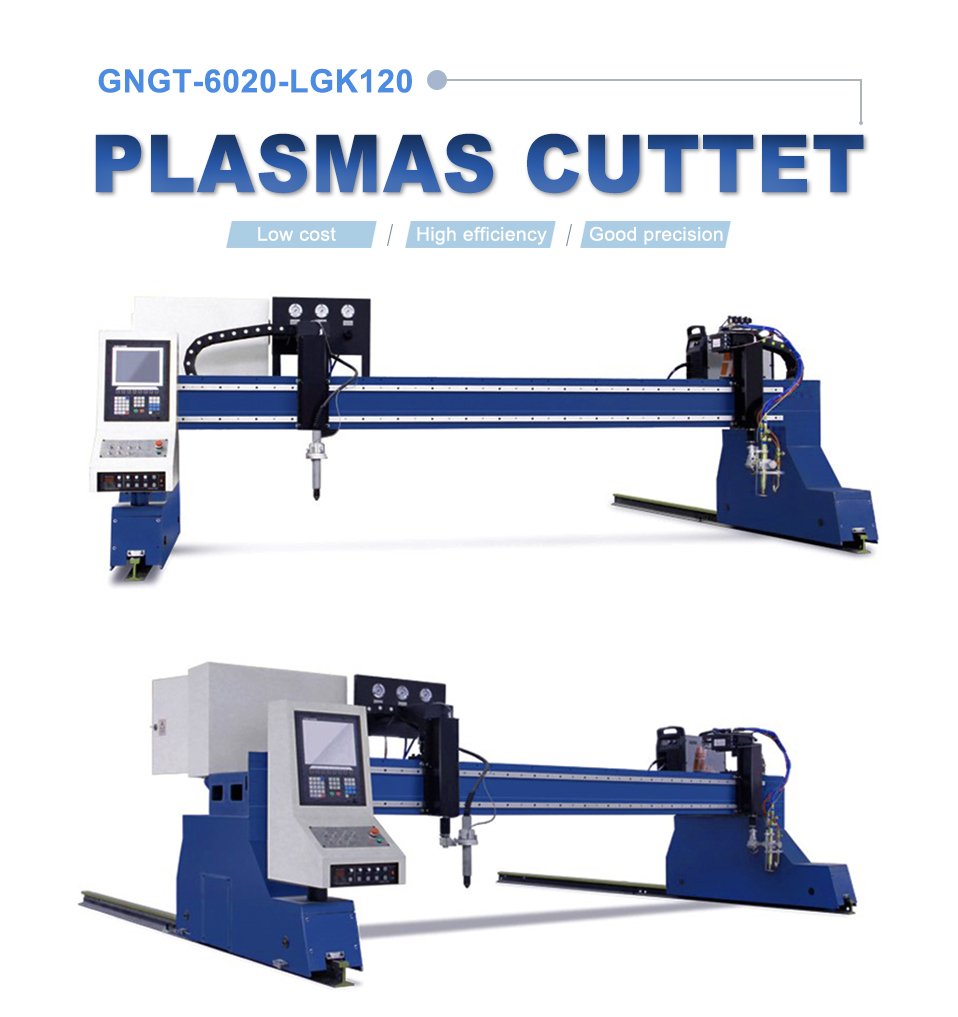

Genuo GNPT Plasma cutting machine, which feature the ability to provide high-quality cuts with minimal thermal deformation, work by using a plasma torch to ionize gas, creating a high-speed plasma stream that melts and blows away metal. The machine can run at high speed, high cutting accuracy, up to ±0.5mm.
Plasma cutters are an essential tool in the metalworking industry, providing high quality cuts with minimal distortion and ensuring consistency and accuracy. In addition, the machine's versatility, speed and ease of use make it ideal for a variety of cutting applications.

Model	GNGT-6020-LGK120
Basic Information	Cutting Method	Plasma	Flame
	Machine Size	3650*8000 mm
	Cutting Material	All metal sheet	Mild/High Carbon steel
	Cutting Size	2000*6000 mm
	Cutting Thickness	According to Plasma source	6-200 mm
	Lifting Travel	≤170 mm
	Max Travel Speed	8000 mm/min
Configuration List	Running Accuracy	≤ 0.05mm
	CNC Controller	FangLing F2300B Controller
	Electric Parts	France Schneider
	Auto Height control	FL1621	THC lift body
	Motor drive mode	Japanese Panasonic servo motor and driver
	Drive system	Dual drive
	Reducer	APKE Planetary reducer
	Drive method	Rack and pinion drive
	Gas pressure	0.4-0.7Mpa for normal plasma power
External Supply	X,Y axis	High Quality Rack & Pinion and 24kg linear rail
	Power	220V/380V(optional)
	Cutting gas	Compressed air	Oxygen + Ethyne(Propane)
	Gas pressure	0.4-0.7MPa	Oxygen:0.5MPa Fuel gas:0.1MPa
Software	Graphic import method	USB
	Programming software	AutoCAD(all dxf,dwg,CAM,NC files)
	Nesting software	FastCAM
Accessories	Torch	One set of Plasma torch	One set of Flame torch
	Consumables	10 sets of nozzles	3 Flame nozzles
	Dimension	365016001580mm
Packing Information	Weight	2000kg
